Aubrugg timber art bridge

Opfikon, CH

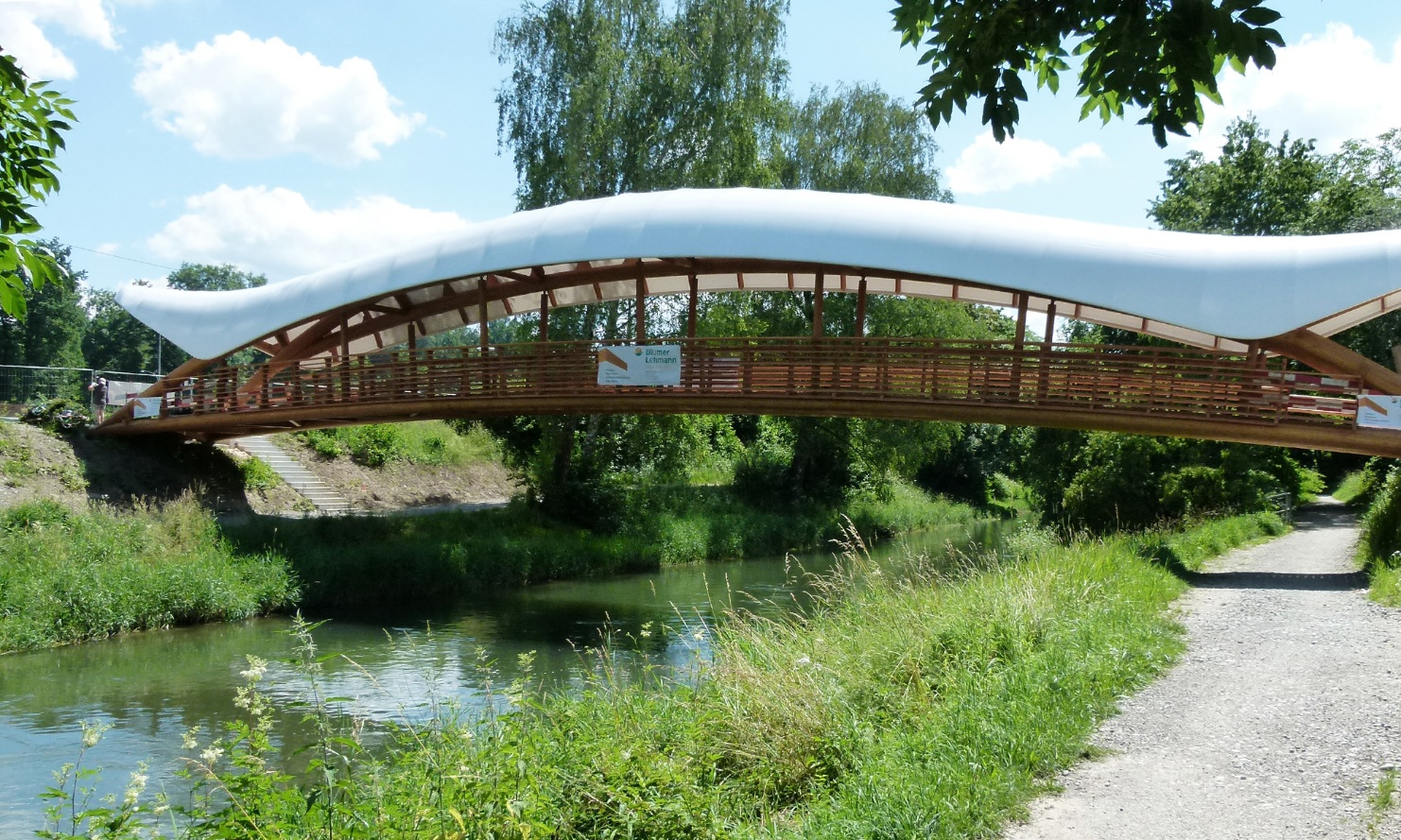

Overall view of the Aubrugg timber art bridge with white curved canopy in fine weather

A unique structure

The design for the bridge was originally rejected in 1991 on the grounds that it was infeasible. 23 years later, the burnt-down timber bridge was replaced by the timber art bridge that uses a revised design by Hermann Blumer. The artfully curved, new pedestrian bridge spans 38 m and weighs 40 t.

The bridge’s main support consists of six continuous arches – one floor arch each on the left and right, left and right pressure arches and the attached side arches. The upper arches absorb the compressive forces and the lower ones the tensile forces. The intersections of the main arches are particularly impressive. The combination of modern joinery technology and highly advanced engineering skills means that they consist of wood-wood joints.

Glue-laminated larch was used for the entire support structure. The pedestrian surface is made of oak from the local forest. A white membrane roof made of a high-tech foil covers the entire bridge. All the components were custom made as individual parts.

Portrait Daniel Bucher Project development Engineering Timber Construction Blumer Lehmann

Daniel Bucher

Head of International Sales | Timber Construction | Free Form

+41 71 388 52 51
daniel.bucher@blumer-lehmann.com
Print PDF

Project details

Client:
Town of Opfikon
Architecture:
Création Holz, Hermann Blumer
Project type:
Art and culture
Construction type:
Free Form
Services:
Timber construction
Construction:
2016
Locality:
Opfikon
Country:
Switzerland

Links

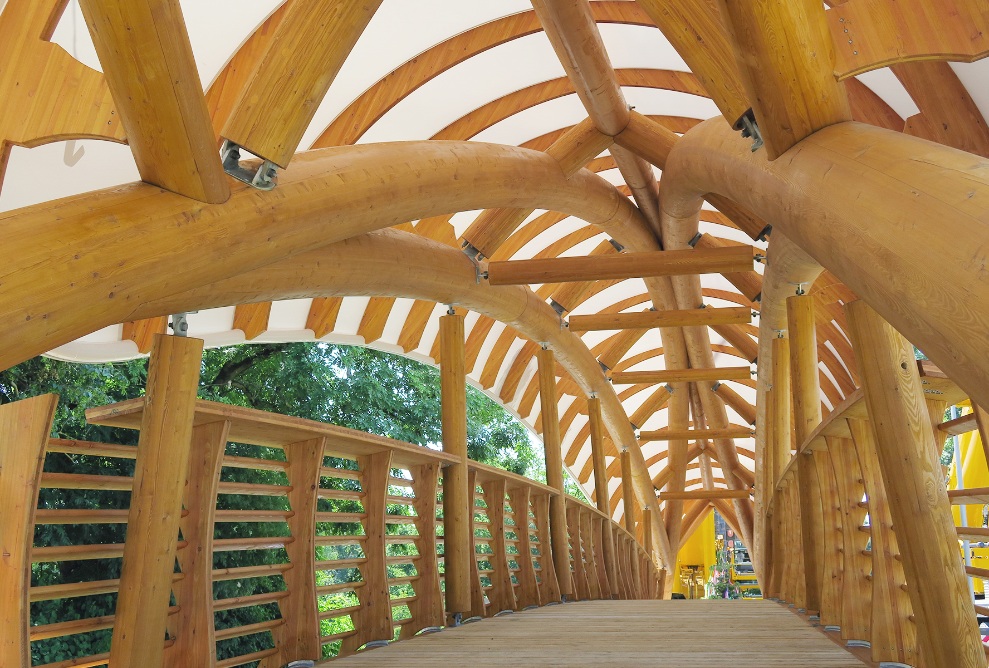

The Aubrugg timber art bridge viewed from the inside. View of curved solid wooden structures and high wooden railings.

The Aubrugg timber art bridge viewed from the inside. View of curved solid wooden structures and high wooden railings.

The Aubrugg timber art bridge viewed from the inside. View of curved solid wooden structures and high wooden railings.

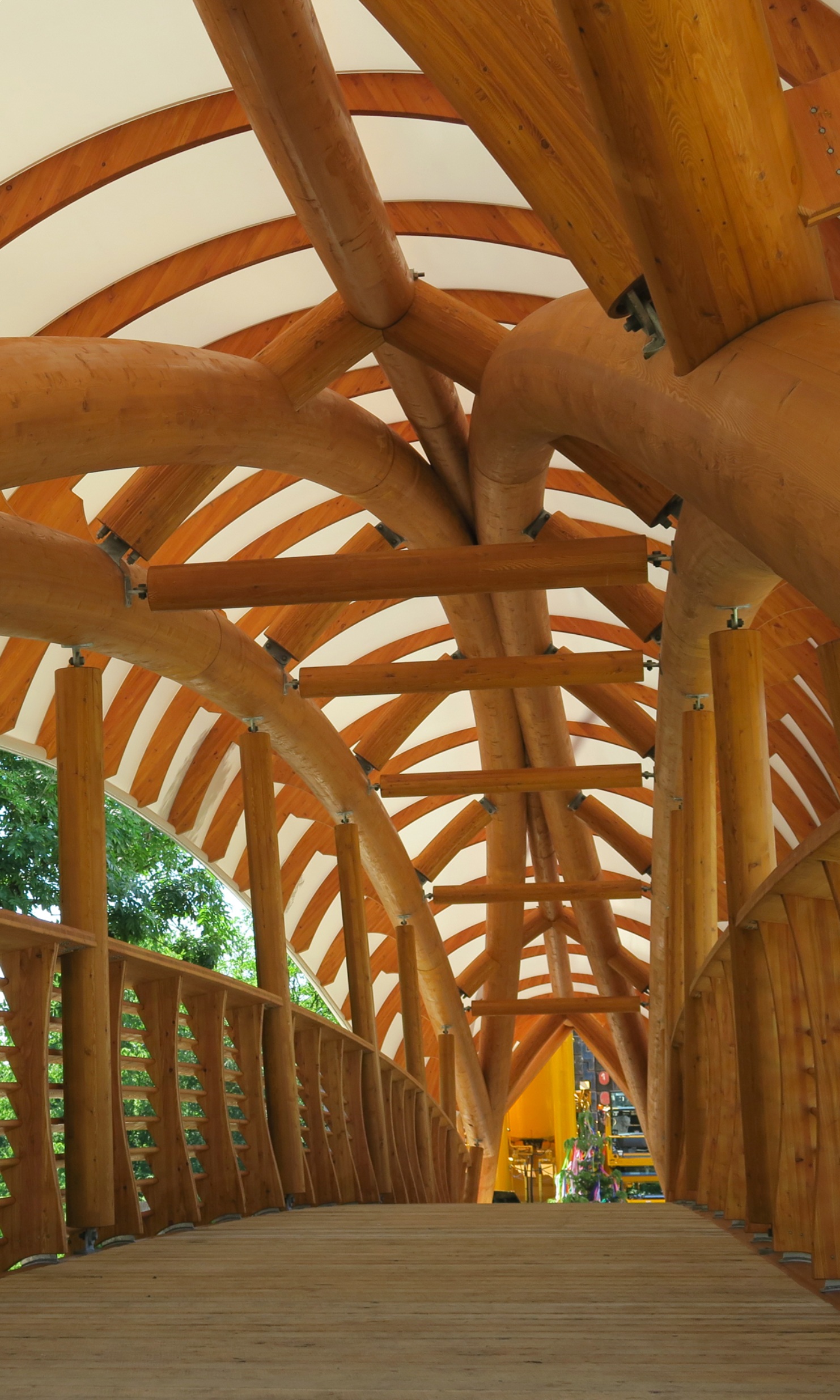

Oak from the local forest was used for the pedestrian surface.

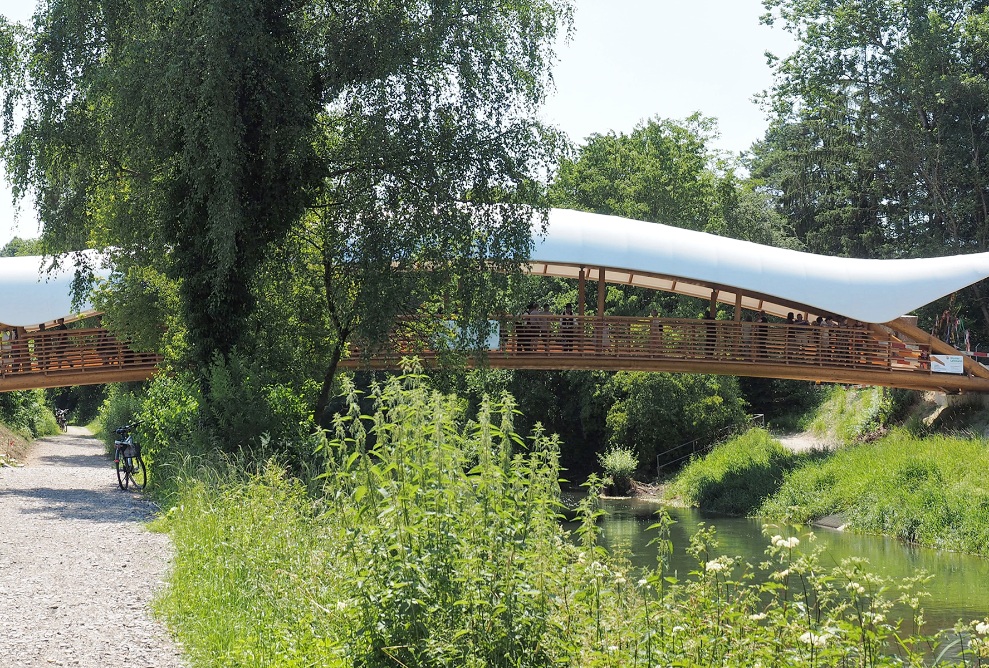

The photograph shows the timber art bridge somewhat hidden behind a large tree in fine weather

The strikingly curved timber bridge combines modern joinery technology and highly advanced engineering skills.

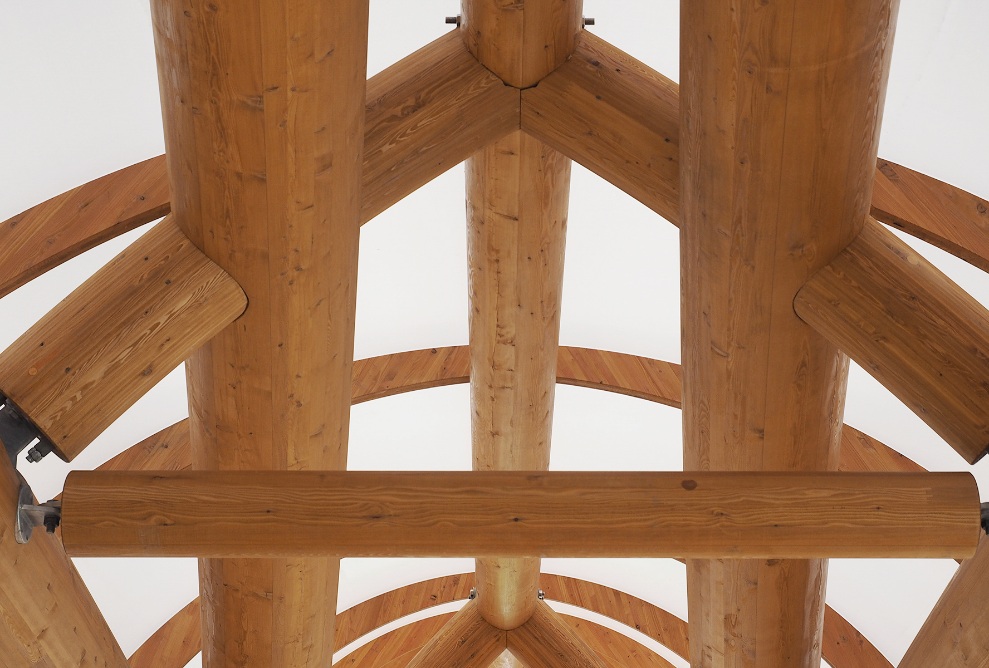

Detailed view of the roof structure of the Aubrugg timber art bridge

The roof of the timber art bridge consists of a white high-tech foil.
